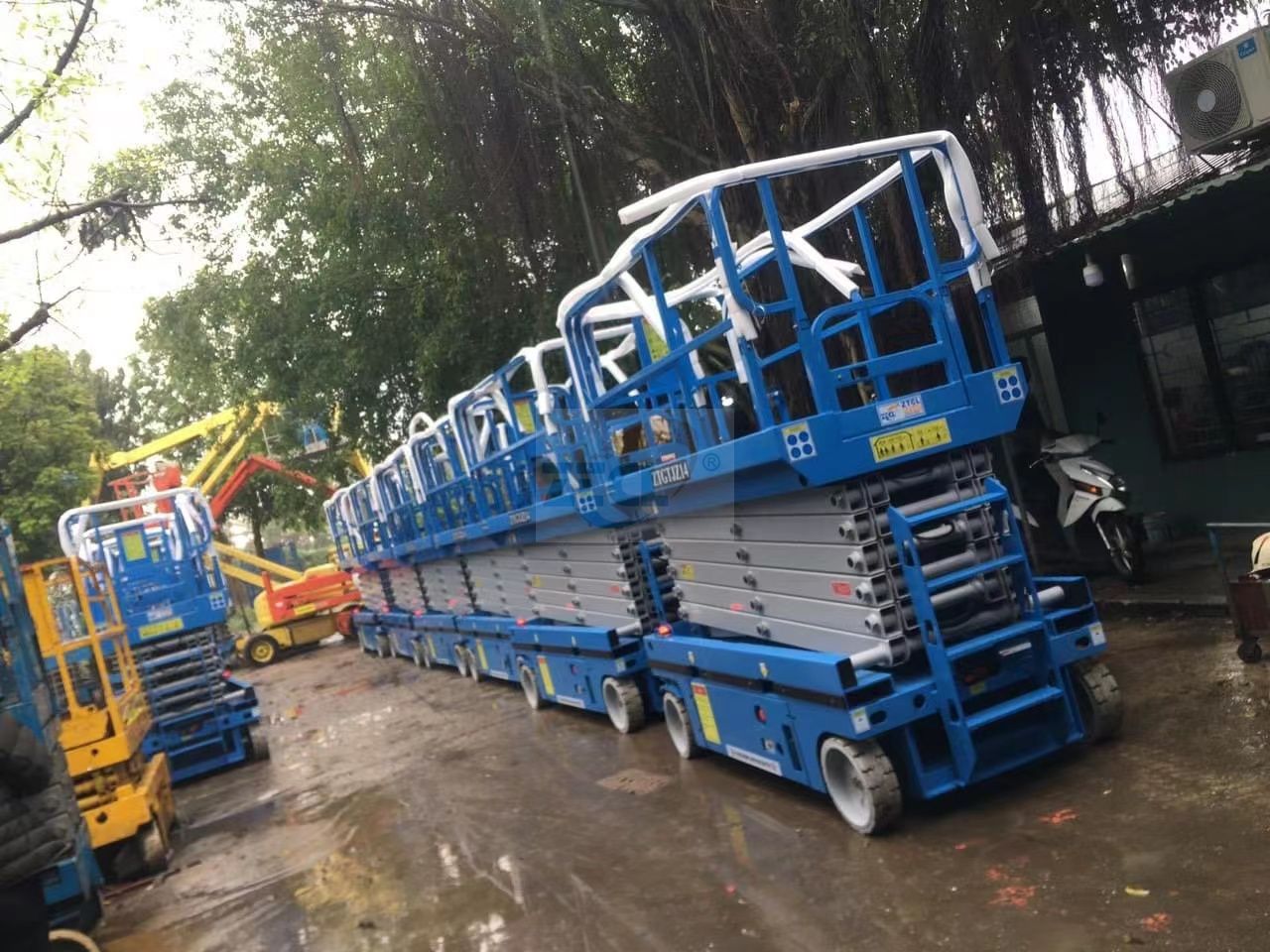

ZTGTJZ Self-propelled scissor lift

Home > PRODUCTS > Electric Scissor lift > ZTGTJZ Self-propelled scissor lift

ZTGTJZ1214M Self-propelled

Model (self-hydraulic drive) ZTGTJZ1214M
Max Working height 13.80m
Maximum platform height 11.80m
Safe working load 320kg
Extended platform safe working load 113kg
Work platform size (length×width×height) 2.26×1.13×1.1m
Overall dimensions
The guardrail is not folded
(length×width×height)
2.475×1.15×2.542m

Overall dimensions
Folding guardrail
(length×width×height)
2.475×1.15×2.094m

Table extension size 0.9m
Minimum ground clearance 0.1/0.02m
Wheelba<x>se 1.89m
Turning radius
(inner wheel/outer wheel)
0/2.2m
Lifting/driving motor 24V/4.5kw
Lifting speed 3-5m/min
Machine travel speed (closed state) 3.5km/h
Machine speed (lifting state) 0.8km/h
Battery 4×12V/300ah
charger 24V/30A
Maximum climbing ability 25%
Maximum allowable angle of work 1.5°/3°
Tires Φ381×127mm
Total Weight 2960kg

PRODUCT DETAIL

Model (self-hydraulic drive)	ZTGTJZ1214M
Max Working height	13.80m
Maximum platform height	11.80m
Safe working load	320kg
Extended platform safe working load	113kg
Work platform size (length×width×height)	2.26×1.13×1.1m
Overall dimensions The guardrail is not folded (length×width×height)	2.475×1.15×2.542m
Overall dimensions Folding guardrail (length×width×height)	2.475×1.15×2.094m
Table extension size	0.9m
Minimum ground clearance	0.1/0.02m
Wheelbase	1.89m
Turning radius (inner wheel/outer wheel)	0/2.2m
Lifting/driving motor	24V/4.5kw
Lifting speed	3-5m/min
Machine travel speed (closed state)	3.5km/h
Machine speed (lifting state)	0.8km/h
Battery	4×12V/300ah
charger	24V/30A
Maximum climbing ability	25%
Maximum allowable angle of work	1.5°/3°
Tires	Φ381×127mm
Total Weight	2960kg

Material:

safety fence	35mm * 35mm square tube
mesa	Anti-slip pattern board 3mm
support	Rectangular tube: 125mm * 75mm * 5mm material Q345 manganese steel
Underframe	Steel plate welding
Link pin	Oil-free bearings
Hydraulic cylinder	2 pcs Hebei Hengyu
Power battery	Torch
Hydraulic oil	Great Wall N46 # anti-wear
Electronic control system	Lecan
Hydraulic drive system	Dali
Main valve	Eaton
Motor pump	Guo Rui
Battery	Torch
charger	Samet
Tires	Bonded solid tires grey
Surface treatment	Spray processing
